Blue Sea Systems

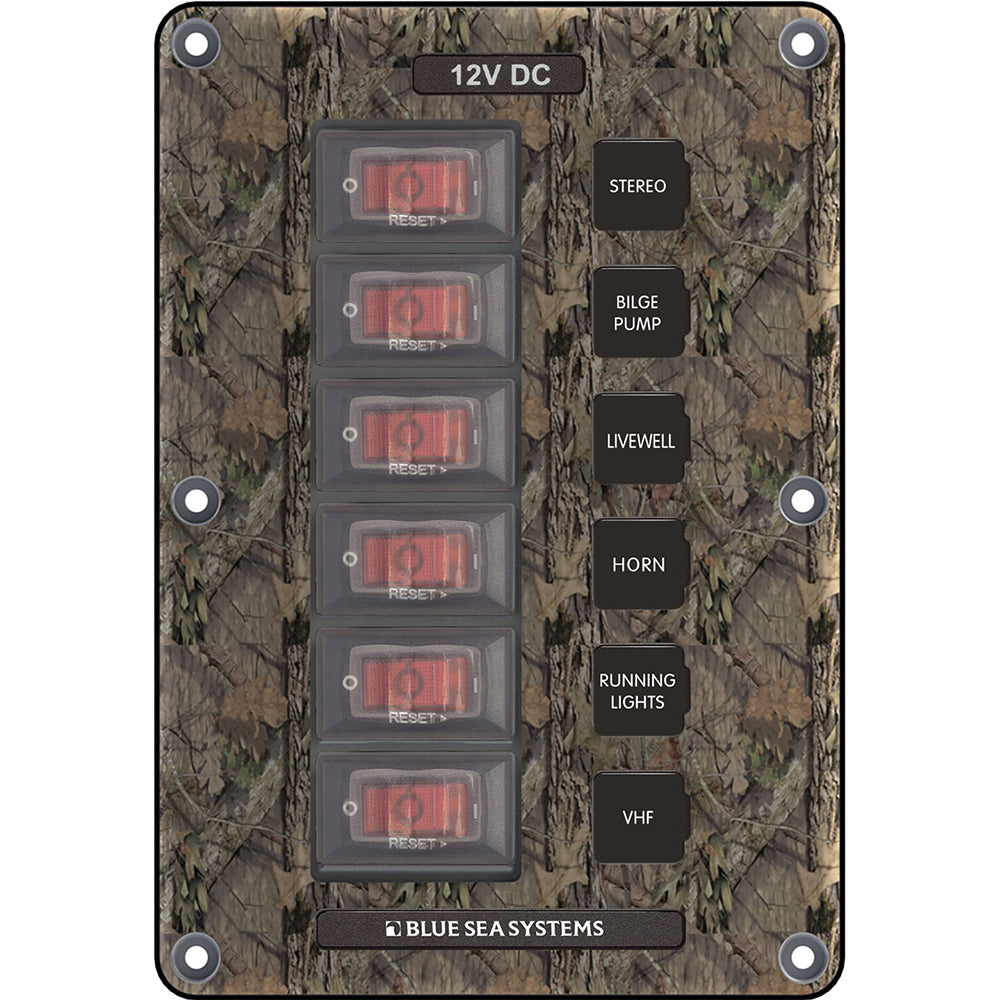

Blue Sea 4325 Circuit Breaker Switch Panel 6 Position - Camo [4325]

Blue Sea 4325 Circuit Breaker Switch Panel 6 Position - Camo [4325]

Regular price $66.33
Regular price Sale price $66.33
Sale Sold out
View full details

4325 Circuit Breaker Switch Panel 6 Position - Camo

Designed for exposed mounting applications.

Features:

  • Illuminated 15A circuit breakers provide switching, “ON” indication and overcurrent protection
  • Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application
  • Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
  • Silicon breaker boots and gasket protects against water ingress
  • Low profle makes it easy to install in tight spaces
  • Fast-on circuit breaker connectors make it quick to wire
  • Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
  • Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems

Specifications:

  • Color: Camo
  • Positions: 6
  • Nominal Voltage: 12 VDC
  • Maximum Amperage: 45A
  • Terminal Type: 1/4" Male Quick Connect
  • Hardware: Stainless Steel #6 x 5/8" mounting screws
  • Ring Terminal Size: M5 (#10)

Specifications:

  • Voltage: 12v
  • AC/DC: DC
  • Max Breaker Quantity: 6
  • Waterproof: Resistant
  • Box Dimensions: 3"H x 6"W x 10"L WT: 0.6 lbs
  • UPC: 632085043254
